5'UTR CGG 99x FMR1-EGFP

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: 5'UTR CGG 99x FMR1-EGFP
出品公司: Addgene
目录编号: 63091
存储实验室: Nicolas Charlet-Berguerand

载体骨架基本信息
载体名称: --
载体出品公司: --
载体抗性: low Amp
空载体大小: --
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: --
高拷贝/低拷贝: 室温
生长条件: --

插入基因信息
插入基因名称: expanded CGG repeats (99 repeats) within the 5'UTR of FMR1
物种来源: H. sapiens (human)
插入大小: --
基因突变: --
GenBank编号 --
启动子 CMV
标签/融合蛋白: EGFP(插入件上的C端子)
克隆方法: --
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 CMV-F
3' 测序引物 --

文献引用方法
材料和方法部分: 5'UTR CGG 99x FMR1-EGFP was a gift from Nicolas Charlet-Berguerand (Addgene plasmid # 63091 ; http://n2t.net/addgene:63091 ; RRID:Addgene_63091)

载体图谱质粒图谱和多克隆位点信息

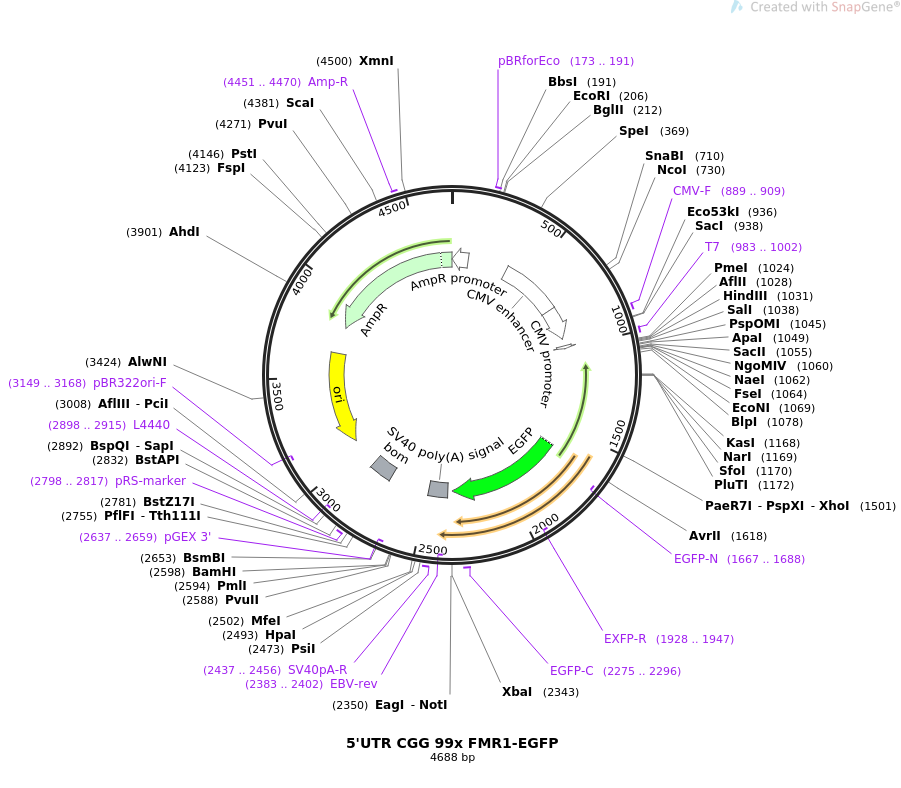

5'UTR CGG 99x FMR1-EGFP质粒图谱

载体简介

载体序列

LOCUS       5'UTR CGG 99x FMR1-EGFP                4688 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  Contains expanded CGG repeats (99 repeats) within the 5'UTR of FMR1
            as found in the Fragile X Tremor Ataxia Syndrome (FXTAS). These
            repeats are in frame with EGFP..
ACCESSION   .
VERSION     .
KEYWORDS    5'UTR CGG 99x FMR1-EGFP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4688)
  TITLE     Charlet-Berguerand plasmids
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 4688)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4688
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        complement(1..105)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     173..191
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     enhancer        355..734
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        735..938
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     889..909
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     983..1002
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        983..1001
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             1625..2341
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="VSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG
                     NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKV
                     NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLE
                     FVTAAGITLGMDELYK"
     primer_bind     complement(1667..1688)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(1928..1947)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     2275..2296
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     polyA_signal    2372..2493
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2383..2402)
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     2437..2456
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     complement(2637..2659)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     misc_feature    2743..2883
                     /label=bom
                     /note="basis of mobility region from pBR322"
     primer_bind     2798..2817
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     complement(2898..2915)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(3069..3657)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(3149..3168)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(3828..4688)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     4451..4470
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
ORIGIN
        1 actcttcctt tttcaatatt attgaagcat ttatcagggt tattgtctca tgagcggata
       61 catatttgaa tgtatttaga aaaataaaca aataggggtt ccgcgcacat ttccccgaaa
      121 agtgccacct gacgtctaag aaaccattat tatcatgaca ttaacctata aaaataggcg
      181 tatcacgagg ccctttcgtc ttcaagaatt cagatcttca atattggcca ttagccatat
      241 tattcattgg ttatatagca taaatcaata ttggctattg gccattgcat acgttgtatc
      301 tatatcataa tatgtacatt tatattggct catgtccaat atgaccgcca tgttggcatt
      361 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      421 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      481 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      541 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      601 atcatatgcc aagtccgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      661 atgcccagta catgacctta cgggactttc ctacttggca gtacatctac gtattagtca
      721 tcgctattac catggtgatg cggttttggc agtacaccaa tgggcgtgga tagcggtttg
      781 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      841 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      901 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      961 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
     1021 gtttaaactt aagcttcgtc gacagggccc accgcggagg ccggcctcag tcaggcgctc
     1081 agctccgttt cggtttcact tccggtggag ggccgcctct gagcgggcgg cgggccgacg
     1141 gcgagcgcgg gcggcggcgg tgacggaggc gccgctgcca gggggcgtgc ggcagcgcgg
     1201 cggcggcggc ggcggcggcg gcggcggcgg cggcggcgga ggcggcggcg gcggcggcgg
     1261 cggcggcggc ggcggcggcg gcggcggcgg cggcggcggc ggcggcggcg gcggcggcgg
     1321 cggcggcggc ggcggcggcg gcggcggcgg cggcggcggc ggcggcggcg gcggcggcgg
     1381 cggcggcggc ggcggcggcg gcggcggcgg cggcggcggc ggcggcggcg gcggcggcgg
     1441 cggcggcggc ggcggcggcg gcggcggcgg cggcggcggc ggcggcggcg gcggctgggc
     1501 ctcgagcgcc cgcagcccac ctctcggggg cgggctcccg gcgctagcag ggctgaagag
     1561 aagatggagg agctggtggt ggaagtgcgg ggctccaatg gcgctttcta caaggcacct
     1621 aggagtgagc aagggcgagg agctgttcac cggggtggtg cccatcctgg tcgagctgga
     1681 cggcgacgta aacggccaca agttcagcgt gtccggcgag ggcgagggcg atgccaccta
     1741 cggcaagctg accctgaagt tcatctgcac caccggcaag ctgcccgtgc cctggcccac
     1801 cctcgtgacc accctgacct acggcgtgca gtgcttcagc cgctaccccg accacatgaa
     1861 gcagcacgac ttcttcaagt ccgccatgcc cgaaggctac gtccaggagc gcaccatctt
     1921 cttcaaggac gacggcaact acaagacccg cgccgaggtg aagttcgagg gcgacaccct
     1981 ggtgaaccgc atcgagctga agggcatcga cttcaaggag gacggcaaca tcctggggca
     2041 caagctggag tacaactaca acagccacaa cgtctatatc atggccgaca agcagaagaa
     2101 cggcatcaag gtgaacttca agatccgcca caacatcgag gacggcagcg tgcagctcgc
     2161 cgaccactac cagcagaaca cccccatcgg cgacggcccc gtgctgctgc ccgacaacca
     2221 ctacctgagc acccagtccg ccctgagcaa agaccccaac gagaagcgcg atcacatggt
     2281 cctgctggag ttcgtgaccg ccgccgggat cactctcggc atggacgagc tgtacaagta
     2341 actctagagc ggccgcttcg agcagacatg ataagataca ttgatgagtt tggacaaacc
     2401 acaactagaa tgcagtgaaa aaaatgcttt atttgtgaaa tttgtgatgc tattgcttta
     2461 tttgtaacca ttataagctg caataaacaa gttaacaaca acaattgcat tcattttatg
     2521 tttcaggttc agggggaggt gtgggaggtt ttttaaagca agtaaaacct ctacaaatgt
     2581 ggtaacagct gcacgtggga tccctgcctc gcgcgtttcg gtgatgacgg tgaaaacctc
     2641 tgacacatgc agctcccgga gacggtcaca gcttgtctgt aagcggatgc cgagcagaca
     2701 agcccgtcag ggcgcgtcag cgggtgttgg cgggtgtcgg ggcgcagcca tgacccagtc
     2761 acgtagcgat agcggagtgt atactggctt aactatgcgg catcagagca gattgtactg
     2821 agagtgcacc atatgcggtg tgaaataccg cacagatgcg taaggagaaa ataccgcatc
     2881 aggcgctctt ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga
     2941 gcggtatcag ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca
     3001 ggaaagaaca tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg
     3061 ctggcgtttt tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt
     3121 cagaggtggc gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc
     3181 ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct
     3241 tcgggaagcg tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc
     3301 gttcgctcca agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta
     3361 tccggtaact atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca
     3421 gccactggta acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag
     3481 tggtggccta actacggcta cactagaagg acagtatttg gtatctgcgc tctgctgaag
     3541 ccagttacct tcggaaanag agttggtagc tcttgatccg gcaaacaaac caccgctggt
     3601 agcggtggtt tttttgtttg caagcagcag attacgcgca gaanaaaagg atctcaagaa
     3661 gatcctttga tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg
     3721 attttggtca tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga
     3781 agttttaaat caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta
     3841 atcagtgagg cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc
     3901 cccgtcgtgt agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg
     3961 ataccgcgag acccacgctc accggctcca gatttatcag caataaacca gccagccgga
     4021 agggccgagc gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt
     4081 tgccgggaag ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt
     4141 gctgcaggca tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc
     4201 caacgatcaa ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc
     4261 ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca
     4321 gcactgcata attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag
     4381 tactcaacca agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg
     4441 tcaacacggg ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa
     4501 cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa
     4561 cccactcgtg cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga
     4621 gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga
     4681 atactcat
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
